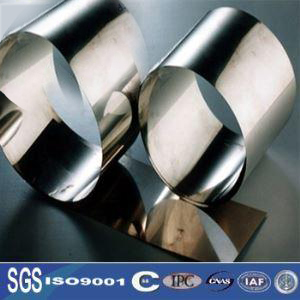

Titanium And Titanium Alloy Foils In Coils
Titanium And Titanium Alloy Foils In Coils
Titanium And Titanium Alloy Foils In Coils

Titanium and titanium alloy foils in coils manufacturers and suppliers in China

stock： 555

Titanium main features:

The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.

Specifications:

Product Name

Titanium foil/ straight foil/Flat foil

Standard

ASTM B337, ASTM B338l, ASTM B348, ASTM B381, ASTM F67, ASTM F136, ASME, AMS, etc

Material

Gr1, Gr2, Gr5, Gr7, Gr9, Gr12, etc

Size(mm)

thickness:  0.2~10mm


length: customized

Shape

customized

Certification

ISO9001,

Surface Treatment

Polished, pickling, bright finished, customized, etc.


Feature

1.Low Density and High Strength
2.Excellent Corrosion Resistance
3.Good resistance to effect of heat
4.Excellent Bearing to cryogenic property
5.Nonmagnetic and Non-toxic
6.Good thermal properties
7.Low Modulus of Elasticity


Advantages

1. First-class technonlgy and the rigorous work attitude
2. We have the most professional team to solve all kinds of the problems you have during the manufacturing process and provide your pressure vessel drawing for free if you need.
3. Low purchasing cost for repetitive orders in the long-run as our
    performance/price ratio is higher.
4. Never be backorder.
5. Excellent customer service policies on repair/exchange/refund.
6. Serving both domestic and overseas customers with various
    requirements for 22 years.


Application

1.Bicycle and automobile exhaust tubing ,cooling pipe,Electroplating equipment,precision instruments , ring,environmental protection equipment
2.Thermal power engineering:condenser, heat exchanger, engine vane
3.Vessels:Running pipes, submersible,gas cylinder
4.Oceaneering: evaporator, heat transmitter, exchanger,oil production platform, oil cooler
5.Chemical engineering:Flat plate heat exchanger, flat plate condenser, cooler tower,chloride barrels
6. Aerospace:Engine, fan plate, gas compressor vane, rack, hatch cover, empennage.

Chemical Composition:


N

C

H

Fe

O

Al

V

Pa

Mo

Ni

Ti

Gr1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

Bal

Gr2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

Bal

Gr5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

Bal

Gr7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

Bal

Gr9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

Bal

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0/.6~0.9

Bal

Mechanical Properities:

Grade

Tensile Strength(Min)

Yield Strength(Min)

Elongation in 4D, Min, %

Reduction of area, Min, %

Kis

Mpa

Kis

Mpa

Gr1

35

240

25

170

24

30

Gr2

50

345

40

275

20

30

Gr3

72.5

500

55

380

18

30

Gr4

85

586

70

483

15

25

Gr5

130

895

120

828

10

25

Gr7

50

345

40

275

20

30

Gr9

90

620

70

483

12

25

Gr11

35

240

25

170

24

30

Gr12

70

483

50

345

18

25

Titanium and titanium alloy foils in coils manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
