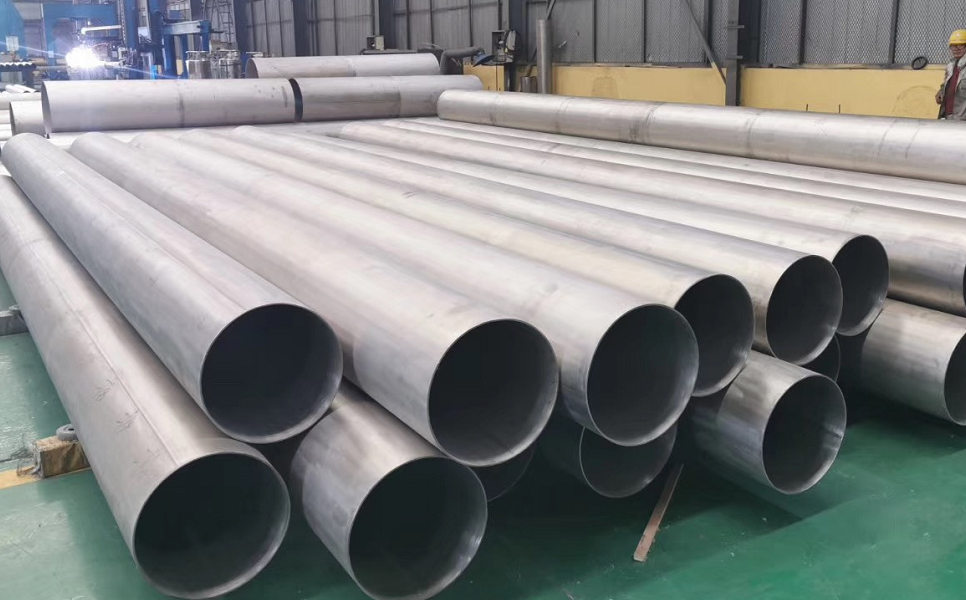

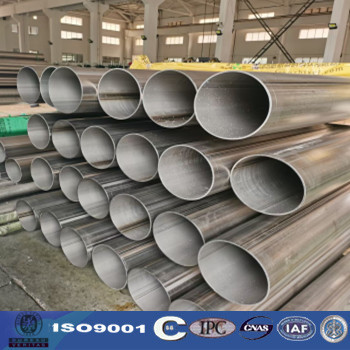

Large Diameter Titanium Welded Pipe
Large Diameter Titanium Welded Pipe
Large Diameter Titanium Welded Pipe
ProductDescriptionProductInformationItemnametitaniumtubeTypeHotSaleDia12.7*0.9*5000mmASTMB338WeldedTitaniumPipeStandardASTMB338SpecificationOD:1~1200mm;WT:0.1~500mm;Length:lessthan14metersPaymentT/T,L
stock： 0
Product Description
| Item name | titanium tube |
Type | Hot Sale Dia12.7*0.9*5000mm ASTM B338 Welded Titanium Pipe |
Standard | ASTM B338 |
Specification | OD: 1~1200mm ; WT: 0.1~500mm ; Length: less than 14 meters |
Payment | T/T, L/C ,west union, as your inquiry |
Certificate | ISO 9001:2008,AS 9100 |
Supply ability | 100000 Kilograms Per Month |
Delivery | Within 10-40 days |
Seamless titanium tube and weld-rolled titanium tube
Seamless titanium tube | Weld-rolled | ||||
category | OD>15 | OD | |||
OD<15 | WT<2.0 | WT>2.0-4.5 | 0.5-0.8 | >0.8-2.0 | |
Length(mm) | 500-4000 | 500-9000 | 500-6000 | 500-800 | 500-5000 |
Weld titanium tube
Weld titanium tube | |||
category | WT 0.5-1.25 | WT >1.25-2.0 | WT >2.0-2.5 |
Length(mm) | 500-15000 | 500-6000 | 500-4000 |
Tolerance
| OD (mm) | The OD tolerance | The WT tolerance |
>6-25 | ±0.10 | |
>25-38 | ±0.13 | |
>38-50 | ±0.15 | ±10% |
>50-60 | ±0.18 | |
>60-80 | ±0.25 |
Technical Requirements
N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Chemical requirements
| Grade | Tensile strength | Yield strength | Elongation | ||
min max | |||||
MPa | ksi | ksi Mpa | ksi Mpa | % | |
Gr1 | 240 | 35 | 20(138) | 45(310) | 24 |
Gr2 | 345 | 50 | 40(275) | 65(450) | 20 |
Gr3 | 450 | 65 | 55(380) | 80(550) | 18 |
Gr7 | 345 | 50 | 40(275) | 65(450) | 20 |
Gr9 | 620 | 90 | 70(483) | ... | 15 |
Gr11 | 240 | 35 | 20(138) | 45(310) | 24 |
Gr12 | 483 | 70 | 50(345) | ... | 18 |
Gr13 | 275 | 40 | 25(170) | ... | 24 |
Gr14 | 410 | 60 | 40(275) | ... | 20 |
Shenyang Bona Titanium Technology Co.,Ltd. one of the largest hot sale dia12.7*0.9*5000mm ASTM B338 welded titanium pipe manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
