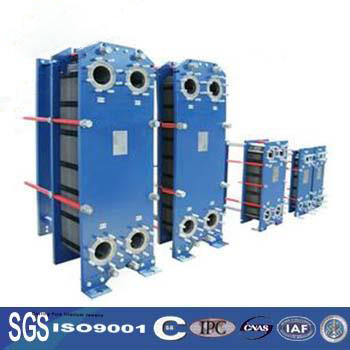

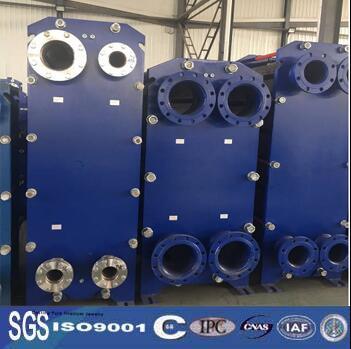

Titanium And Alloy Plate Heat Exchanger

Condition:NewPlaceofOrigin:Shenyang,China(Mainland)BrandName:DAJIModelNumber:DAJIBRJHStructure:PlateHeatExchangerCertification:ISO9001Warranty:1yearAfter-salesServiceProvided:Engineersavailabletoservi

stock： 0

Condition: New

Place of Origin: Shenyang, China (Mainland)

Structure: Plate Heat Exchanger

Certification: ISO9001

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas

Frame material: Gr1, Gr2

Plate material: Gr1, Gr2

Application of industry: Pasteurization,food,ship,Petrochemical,chemical industry etc

Thickness: 0.5 /0.6mm ,Top performance, low budget

The competitive advantage of product line:

We have rich experience in heat exchanger industry. Our products are used in food, power, marine, chemical applications. We also offer technical service and application analysis.

Sea water to water heat exchanger,small water cooler heat exchange plate

Plate material	Stainless steel—clean water, river water, edible oil, and mineral oil Titanium and titanium palladium—sea water, salt water, salt. Hastelloy—sulfuric acid, hydrochloric acid, phosphoric acid
Gasket material	NBR (nitrile rubber)—water, sea water, mineral oil, brine HNBR—high temperature mineral oil, high temperature water EPDM(ethylene-propylene)—hot water, water vapor, acids,alkalis. HEPR—high temperature water vapor, acids and alkalis fluid. FKM/VITON—strong acids and strong alkalis
Frame material	Standard: carbon steel Special: stainless steel covering
Connection material	Standard: EPR and NBR Special: Stainless steel,titanium

Replace oem plate heat exchanger

Advantages of Plate Heat Exchangers (PHE)

•Low investment, operation and maintenance costs.

•Highly efficient heat transfer

• Asymmetrical flow gap available for the most costeffective solution.

• Use of smallest temperature difference </= 1°C

• Up to 75% less space required.

• Self-cleaning effect due to highly turbulent flow behaviour

• Future additional capacity is possible by fitting extra heat transfer plates

• Double gasket with leak groove gives high safety with regards to media mixing.

• Easy to open/clean

• Plate heat exchanger,top performance,low budget

Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest titanium and alloy plate heat exchanger manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
