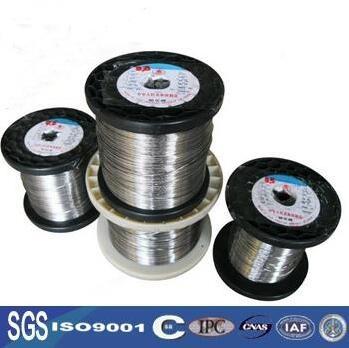

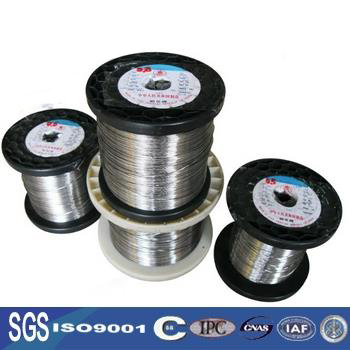

N6 Nickel Wire Pure Nickel Wire Ni200 Wire
N6 Nickel Wire Pure Nickel Wire Ni200 Wire
N6 Nickel Wire Pure Nickel Wire Ni200 Wire
N6 Nickel Wire Pure Nickel Wire Ni200 Wire
ApplicationRangeThisgroupofnickelbasedwiresismainlyappliedforthemanufactureofelectricalvacuumcomponentswithinelectricalinstruments.Productfeatures 1)Wellmechanicalandphysicalpropertiesofthematerialqua
stock： 0
product description
Application Range
This group of nickel based wires is mainly applied for the manufacture of electrical vacuum components within electrical instruments.
Product features
1)Well mechanical and physical properties of the material quality
2)Has a high melting point., with good corrosion-resistance
3)With efficient hot intensity
The description of products
1) The chemical composition:
| Name | Brand | Main chemical composition,% | executive standard | ||||||
| Ni+Co | Cu | Si | Mn | C | Mg | impurity | |||
| Pure nickel | N4 | ≥99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.1 | GB/T5235-2007 |
| N6 | ≥99.5 | ≤0.10 | ≤0.10 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.5 | ||
2) Size and Tolerances
| Diameter | 0.025-0.03 | >0.03-0.10 | >0.10-0.40 | >0.40-0.80 | >0.80-1.20 | >1.20-2.00 |
| Tolerance | ±0.0025 | ±0.005 | ±0.006 | ±0.013 | ±0.02 | ±0.03 |
3) Properties of Products
| Diameter(mm) | Status | Tensile strength,N/mm2 | Elongation% (no less than) | |
| N4 | N6. DN. Nsi0.19. NMg0.1 | |||
| 0.03-0.20 | M | ≥370 | ≥420 | 15 |
| 0.20-0.50 | ≥340 | ≥390 | 20 | |
| 0.50-1.00 | ≥310 | ≥370 | 20 | |
| 1.00-6.00 | ≥290 | ≥340 | 25 | |
| 0.10-0.50 | Y2 | 685-885 | 780-980 | - |
| 0.50-1.00 | 580-785 | 685-835 | - | |
| 1.00-6.00 | 490-640 | 540-685 | - | |
| 0.03-0.09 | Y | 780-1275 | 880-1325 | - |
| 0.09-0.50 | 753-980 | 830-1080 | - | |
| 0.50-1.00 | 685-880 | 735-980 | - | |
| 1.00-6.00 | 535-835 | 640-885 | - | |
Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest n6 nickel wire pure nickel wire ni200 wire manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
