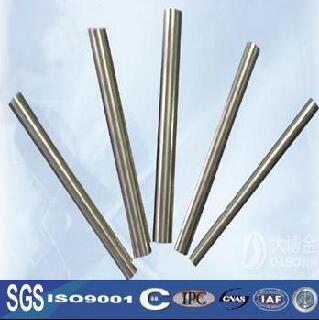

High Quality Ti6AL4V ELI Bars
High Quality Ti6AL4V ELI Bars
High Quality Ti6AL4V ELI Bars
High Quality Ti6AL4V ELI Bars
Specification ItemnameOrthopedics6AL4VELIimplanttitaniumbarsStandardASTMF136,ASTMF67,ASTMB348,ASTMB381,AMS4928MaterialGr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr12,Gr23,Diameter1.0-200mmLength<6000mmShape1.Roundba
stock： 0
Product description
Specification
| Item name | Orthopedics Ti6AL4V ELI implant titanium bars |
Standard | ASTM F136 , AMS 4928 |
Material | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23, |
Diameter | 1.0-200mm |
Length | <6000mm |
Shape | 1. Round bar 2. Square bar 3. Hexagonal bar |
Surface | acid pickling surface, polished surface, black surface |
Condition | Cold rolled(Y), Hot rolled(R), Annealed (M) |
technology | hot forged , hot rolled , machining |

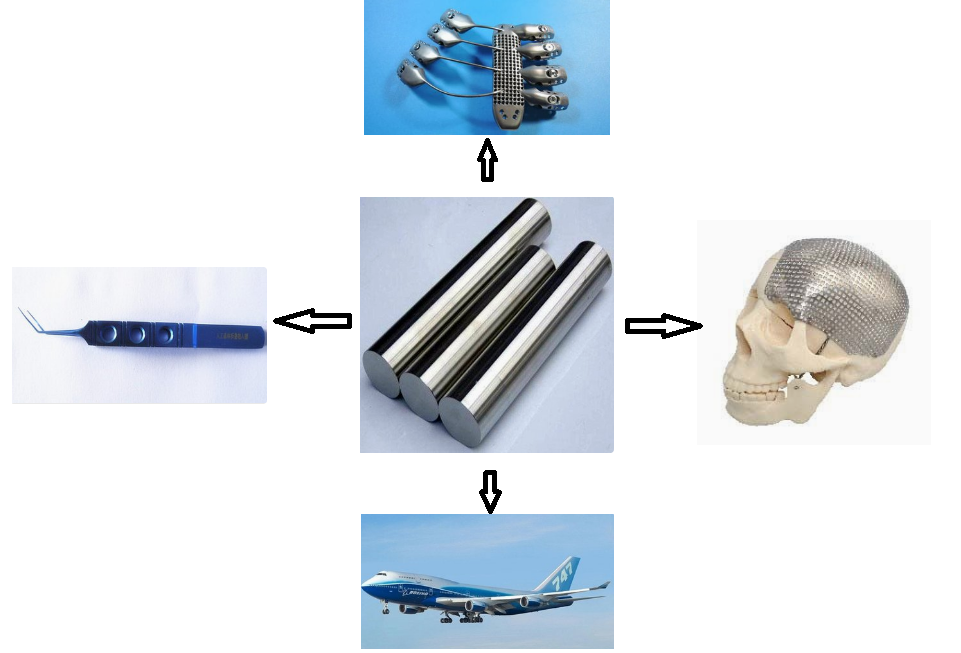

Application | 1. the frame of the planes |
2. for surgical implant and medical use |
Chemical Composition
| Chemical Composition | |||||||||||
Ti | Al | V | Mo | Ni | Pd | N | C | H | Fe | O | |
GR1 | balance | / | / | / | / | / | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 |
GR2 | balance | / | / | / | / | / | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 |
GR3 | balance | / | / | / | / | / | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 |
GR4 | balance | / | / | / | / | / | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 |
GR5 | balance | 5.5~6.75 | 3.5~4.5 | / | / | / | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 |
GR5 ELI | balance | 5.5-6.5 | 3.5-4.5 | 0.05 | 0.08 | 0.012A | 0.25 | 0.13 | |||
GR7 | balance | / | / | / | / | 0.12~0.25 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 |
GR9 | balance | 2.5~3.5 | 2.0~3.0 | / | / | / | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 |
GR12 | balance | 0.2~0.4 | 0.6~0.9 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | |||
GR23 | balance | 5.5~6.5 | 3.5~4.5 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | |||
Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest high quality ti6al4v eli bars manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
