Hot Sale Good Quality Titanium Alloy Bar Gr5 ASTMB348 Titanium Bars
Hot Sale Good Quality Titanium Alloy Bar Gr5 ASTMB348 Titanium Bars

HotSaleGoodQualityTitaniumAlloyBarGr5ASTMB348titaniumbarsItemNameTitaniumbar/titaniumrodStandardASTMB348,ASTMF67,ASTMF136,AMS4928MaterialGr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr12,Gr23Diameter3~350mmLength500~6

stock: 0

Product description

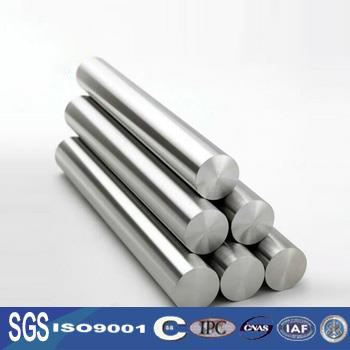

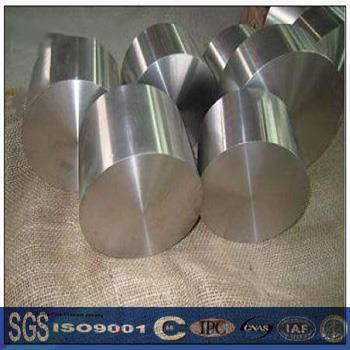

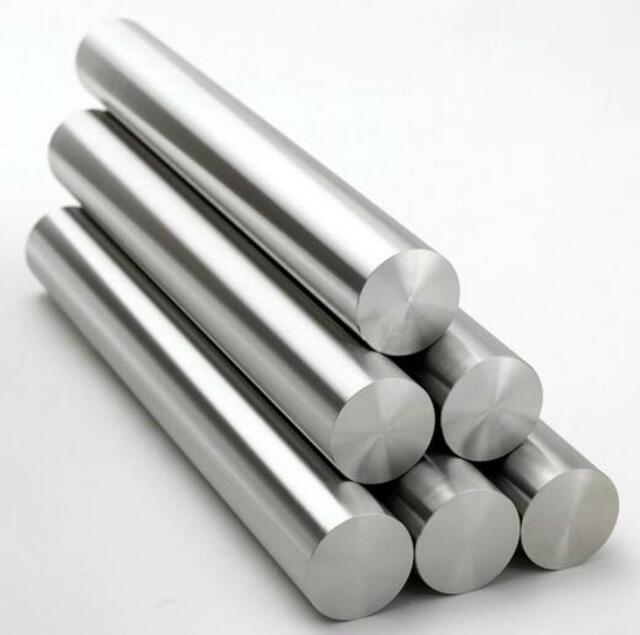

Hot Sale Good Quality Titanium Alloy Bar Gr5 ASTMB348 titanium bars


Item Name

Titanium bar /titanium rod

Standard

ASTM B348,ASTM F136, AMS 4928

Material

Gr5

Diameter

3~350mm

Length

500~6000mm or according to customers' request

Product Status

Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status

Shape

Round bar, square bar , hex bar...

Feature

1.Polished surface without any defects free from cracks no pittings
2.Two ends flatting making sure length tolerance and good looking


Physical Properties


Tensile Strength(min)

Yeild Strength(min)

Elongation(%)


ksi

MPa

ksi

MPa


Grade 5

130

895

120

828

10


Chemical composition


N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Ti

Grade 5

0.05

0.08

0.015

0.40

0.20

5.5-6.75

3.5-4.5

/

/

/

Bal


Features:

Low density and high strength

Exceptional corrosion resistance

Excellent elevated temperature properties

Excellent bearing to cryogenic property

Essentially nonmagnetic

Nontoxic, non-allergenic and fully biocompatible

Good thermal properties

Low modulus of elasticity

Low thermal expansion coefficient

High melting point

Excellent aesthetic qualities

Environmentally sound


We are the best manufacturer of Titanium and Titanium alloy.It's widely used in the field of aerospace, vessels, weapons, electricity and electronic products, instrument and meters, vehicles, oil exploration and medical equipment.

centered cubic structure, called beta titanium. Using the above two kinds of different characteristics of titanium, add the appropriate alloying elements, content makes the phase change temperature and phase change and get a different titanium alloy of the organization.50 ~ 60 s of the 20th century, mainly is the development of aviation engine with high temperature and the body with the structure of the titanium alloy, titanium alloy developed a batch of corrosion resistant titanium alloy in the 70 s, 80 s, to further corrosion resistant titanium alloy and high strength titanium alloy.The titanium alloy is mainly used to make jet engine parts, followed by the structural parts of rockets, missiles and high-speed aircraft.


Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest hot sale good quality titanium alloy bar gr5 astm b348 titanium bars manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
