Bt6 Bt1-0 Bt1-00 PT3B PT7m PT1m Titanium Pipe

Grade1, Grade 2, Ti6Al/4V, ВТ1-0, ОТ4 Titanium bar hot rolled bar dia 10 to 330mm

stock： 0

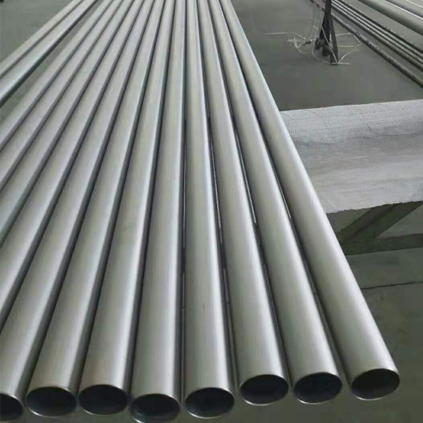

Bt6 Bt1-0 Bt1-00 Pt3b PT7m PT1m Titanium Pipe

Titanium ingot	Bt6 Bt1-0 Bt1-00 Pt3b PT7m PT1m (dia 370 - 510 mm)
Titanium slab	Bt6 Bt1-0 Bt1-00 Pt3b PT7m PT1m
Titanium bar
hot rolled bar	dia 10 to 330mm, different grades
cold rolled bar	dia 10 to 330mm, different grades
forged bar	dia 60 to 330mm, different grades
turned bar
titanium 5V forged bar	dia 470 - 510 mm
Titanium sheet	0.5 to 10 mm different alloys
Titanium plate	11 to 80mm VT1-0, VT6, ОТ4, VТ20, VТ14, PT-3V, SP-3V
Titanium seamless tube	we take orders for production
Titanium welded tube	Bt6 Bt1-0 Bt1-00 Pt3b PT7m PT1m Titanium Pipe
Titanium wire	titanium welding wire 1 to 6 mm in coils
Titanium tank	we take orders for production according to customer's drawings

Grade	Chemical composition, %											Mechanical properties				Specification or
	N	C	H	Fe	O	Al	V	Zr	Residual, max		Ti	sB,MPa	s0,2MPa		d,%	technical
	max	max	max	max	max				each	total			min	max	min	requirements
Titanium tube Grade 2	0.03	0.1	0.015	0.3	0.25	-	-	-	0.1	0.4	base	345	275	450	20	ASTM B 337 Titanium tube
Titanium tube V 1-0	0.04	0.07	0.01	0.25	0.2	0.7max	-	-	-	0.3	base	343-568	-	-	24	GOST 22897-86 Titanium tube
Titanium tube Grade 9	0.02	0.05	0.013	0.25	0.12	2.5-3.5	2.0-3.0	-	0.1	0.4	base	860A) 620B)	725A)485B)	-	10A) 15B)	ASTM B 337 Titanium tube
Titanium tube PT 3V	0.04	0.1	0.006	0.25	0.12	3.5-5.0	1.2-2.5	0.3	-	0.3	base	735	617	-	12	TU-3-1280-84 Titanium tube

Usage:

We are the best manufacturer of Titanium and Titanium alloy.It's widely used in the field of aerospace, vessels, weapons, electricity and electronic products, instrument and meters, vehicles, oil exploration and medical equipment.

The process flow of pure titanium tube in production is as follows:

Surface treatment - blanking - rolling - to - oil - drying - scale shear - annealing straightening - acid - rolling - finished products to the oil - drying - annealing - straightening - finished cutting - acid - inspection - packing

(note: the above processes may be added or reduced according to product specifications and performance requirements.)

For the titanium tube billet, which is lubricated by copper plating prior to rolling, the process of copper plating will be added together before the surface treatment of the process surface.
