Titanium Tubing And Titanium Pipe For Bending For Aerospace

ProductDescriptionBuySeamlessGr2TitaniumSquareTube1.Standard:ASTMB337/B338,ASMESB337/SB338,ASTMB861/B862,ASTMF136,GB/T,JIS2.Dimension:A.Seamlesspipe:Φ(2~159)×(0.2~7.0)×LB.ExtrudedPipe:Φ(25~210)×(6.0~2

stock： 0

Product Description

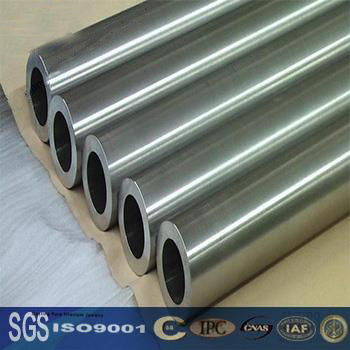

Buy Seamless Gr2 Titanium round Tube

1. Standard: ASTM B337/B338, ASME SB337/SB338, ASTM B861/B862,

ASTM F136, GB/T, JIS

2. Dimension:

A. Seamless pipe: Φ (2~159)× (0.2~7.0)× L

B. Extruded Pipe: Φ (25~210)× (6.0~20)× L

C. Welded Pipe: Φ (50~350) × (2.0~20) × L

3. Quality Assurance:

----According to globally recognized standards, such as ASTM, AMS, ASME, JIS, MIL...

---- provide third-part inspection reports. Such as the BaoTi and Northwest institute of no-ferrous metal research test center.

----Chemical composition, Mechanical properties are detected by ultrasonic waves

---- ISO, BV and TUV — — Quality system.

----You can return within a month if you are not satisfied with our products.

4. Delivery time:

A. In stock: Within 2 days

B. Less than 25 tons: 15 days

C. More than 25 tons: According to the contract.

Seamless tube:

Titanium sponge— Compacting electrodes— Melting— Forge— Bar billets—

Extruding— Rolled— Straightening— Seamless tube

Welded tube:

Titanium sponge— Compacting electrodes— Melting— Forge— Plate billets— Hot rolled— Cold rolled— Titanium scrap— Welded— Welded tube

5. Application:

1. Bicycle and automobile exhaust tubing, cooling pipe, Electroplating equipment, precision instruments, ring, environmental protection equipment

2. Thermal power engineering: Condenser, heat exchanger, engine vane

3. Vessels: Running pipes, submersible, gas cylinder

4. Oceaneering: Evaporator, heat transmitter, exchanger, oil production platform, oil cooler

5. Chemical engineering: Flat plate heat exchanger, flat plate condenser, cooler tower, chloride barrels

6. Aerospace: Engine, fan plate, gas compressor vane, rack, hatch cover, empennage.

Grade	ELEMENT COMPOSITION.%
	Ti		Al		V		Fe		C		N	H		O	Other
1	Balance		_		_		0.20		0.08		0.03	0.015		0.18	0.4
2	Balance		_		_		0.30		0.08		0.03	0.015		0.25	0.4
3	Balance		_		_		0.30		0.08		0.05	0.015		0.35	0.4
7	Balance		Pd(0.12~0.25)		_		0.30		0.08		0.03	0.015		0.25	0.4
9	Balance		2.5~3.5		2.0~3.0		0.25		0.08		0.03	0.015		0.15	0.4
Grade		Tensile strength(min)				Yield strength(min)							Elongation(%)
		ksi		MPa		min		max
						ksi	MPa	ksi		MPa
1		35		240		25	170	45		310			24
2		50		345		40	275	65		450			20
3		65		450		55	380	80		550			18
7		50		345		40	275	65		450			20
9		90		620		70	485	..		..			15

Shenyang Bona Titanium Technology Co.,LTd. is one of the largest titanium tubing and titanium pipe for bending for aerospace manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
