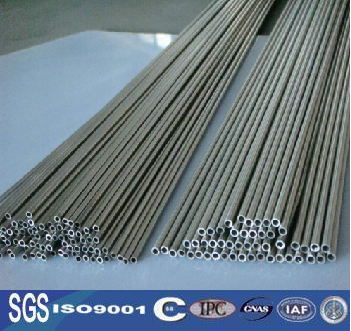

Titanium Capillary Tube ASTM B861 ASTM B338 Gr2 Titanium Tube

TitaniumCapillaryTubeASTMB861ASTMB338Gr2TitaniumTube1.Standard:ASTMB861/B3382.Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr123.Application:Aviation,medical,industryetc.2.ThematerialwecanproduceisGr1,Gr2,Gr3...Gr38

stock： 0

Product description

Titanium Capillary Tube ASTM B861 ASTM B338 Gr2 Titanium Tube

1.Standard: ASTM B861/B338

2. Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12

3. Application: Aviation, medical, industry etc.

2. The material we can produce is Gr1, Gr2, Gr3...Gr38

3. Standard: ASTM B337/B338, ASME SB337/SB338, ASTM B861/B862,

ASTM F136, GB/T, JIS

4. Dimension:

A. Seamless pipe: (2~159)* (0.2~7.0)* L

B. Extruded Pipe: (25~210)* (6.0~20)* L

C. Welded Pipe: (50~350) * (2.0~20) * L

5. Quality Assurance:

----According to globally recognized standards, such as ASTM, AMS, ASME, JIS, MIL...

---- provide third-part inspection reports. Such as the BaoTi and Northwest institute of

No-ferrous metal research test center.

----Chemical composition, Mechanical properties are detected by ultrasonic waves

---- ISO, BV and TUV - - Quality system.

----You can return within a month if you are not satisfied with our products.

6. Delivery time:

A. In stock: Within 2 days

B. Less than 25 tons: 15 days

C. More than 25 tons: According to the contract.

Seamless tube:

Titanium sponge- Compacting electrodes- Melting- Forge- Bar billets-

Extruding- Rolled- Straightening- Seamless tube

Welded tube:

Titanium sponge- Compacting electrodes- Melting- Forge- Plate billets-

Hot rolled- Cold rolled- Titanium scrap- Welded- Welded tube

Application:

1. Bicycle and automobile exhaust tubing, cooling pipe, Electroplating equipment, precision instruments, ring, environmental protection equipment

2. Thermal power engineering: Condenser, heat exchanger, engine vane

3. Vessels: Running pipes, submersible, gas cylinder

4. Oceaneering: Evaporator, heat transmitter, exchanger, oil production platform, oil cooler

5. Chemical engineering: Flat plate heat exchanger, flat plate condenser, cooler tower, chloride barrels

6. Aerospace: Engine, fan plate, gas compressor vane, rack, hatch cover, empennage.

Grade	ELEMENT COMPOSITION.%
Grade	Ti	Al	V	Fe	C	N	H	O	Other
1	Balance	_	_	0.20	0.08	0.03	0.015	0.18	0.4
2	Balance	_	_	0.30	0.08	0.03	0.015	0.25	0.4
3	Balance	_	_	0.30	0.08	0.05	0.015	0.35	0.4
5	Balance	5.5~6.75	3.5~4.5	0.40	0.08	0.05	0.015	0.20	0.4
7	Balance	Pd(0.12~0.25)	_	0.30	0.08	0.03	0.015	0.25	0.4
9	Balance	2.5~3.5	2.0~3.0	0.25	0.08	0.03	0.015	0.25	0.4
38	Balance	Al(3.5~4.5)	V(2.0~3.0)	1.2~1.8	0.08	0.03	0.015	0.2~0.3	0.4

Grade	Tensile strength(min)		Yield strength(min)		Elongation(%)
Grade	ksi	MPa	ksi	MPa	Elongation(%)
1	35	240	20	138	24
2	50	345	40	275	20
3	65	450	55	380	18
5	130	895	120	828	10
7	50	345	40	275	20
9	90	620	70	483	15
38	130	895	115	794	10

Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest titanium capillary tube ASTM B861 ASTM B338 gr2 titanium tube manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
