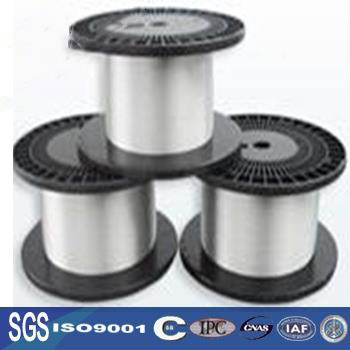

Supply Diameter 0.5-6.0mm Titanium Alloy Wire
Supply Diameter 0.5-6.0mm Titanium Alloy Wire
Supply Diameter 0.5-6.0mm Titanium Alloy Wire
Supply Diameter 0.5-6.0mm Titanium Alloy Wire
Productiondescription ProductionNameTitaniumwireGradeGr1,Gr2,Gr3,Gr4,Gr5,Gr6,Gr7,Gr9,Gr11,Gr12,Gr23,TC4,SizeDia0.1-7.0*Coil/Straight/SpoolStandardAWSA5.16,ASTMB863,ASTMF136,ASTMF67,ASTMF1295,ISO5832-
stock： 0
Production description
Production Name | Titanium wire |
Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr9, Gr11, Gr12, Gr23, TC4, |
Size | Dia 0.1-7.0 * Coil / Straight/Spool |
Standard | AWS A5.16, ASTM B863, ASTM F136, ASTM F67, ASTM F1295, ISO5832-2, ISO5832-3 |
Supply status | M (Y/ R) |
Application | Industrial, aviation, shipping, chemical equipment industries, medical, optical wire etc. |
Feature | High corrosion resistance, low density, good thermal stability |
Technics | Hot rolling or cold rolling |
Surface | Polished, Pickling, Acid cleaning, Sandblasting |
Packing | Wooden case as outside, plastic bag as inside, or standard export packaging |
MOQ | 1kg |
Payment terms | T/T, L/C, D/A, D/P, Escrow, Western Union, PayPal |
Certificate | ISO 9001:2008; The third test report; TÜV Rheinland; Supplier Assessment Certificate |
Supply ability | 5 Tons Per month |
Delivery time | 5—40days according to the quantity and process of the product |
Tolerance
Tolerance | ||||||
Diameter (mm) | 0.1~0.2 | >0.2~0.5 | >0.5~1.0 | >1.0~2.0 | ~2.0~4.0 | >4.0~7.0 |
Tolerance (mm) | -0.025 | -0.04 | -0.06 | -0.08 | -0.1 | -0.14 |
Notes:Other specification and tolerance will be available. | ||||||
Mechanical Properties
Grade | Diameter/mm | Mechanical properties in room temperature | |
Tensile strength Rm/Mpa | Break Elongation A/% | ||
Gr1 | 4.0~7.0 | >=240 | >=24 |
Gr2 | >=400 | >=20 | |
Gr3 | >=500 | >=18 | |
Gr4 | >=580 | >=15 | |
Gr1 | 0.1~<4.0 | >=240 | >=15 |
Gr2 | >=400 | >=12 | |
Gr3 | >=500 | >=10 | |
Gr4 | >=580 | >=8 | |
TA1-1 | 1.0~7.0 | 295~470 | >=30 |
TC4EL1 | 1.0~7.0 | >=860 | >=10 |
TC4 | 1.0~2.0 | >=925 | >=8 |
>=2.0~7.0 | >=895 | >=10 | |
Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest supply diameter 0.5-6.0mm titanium alloy wire manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
