Product Description

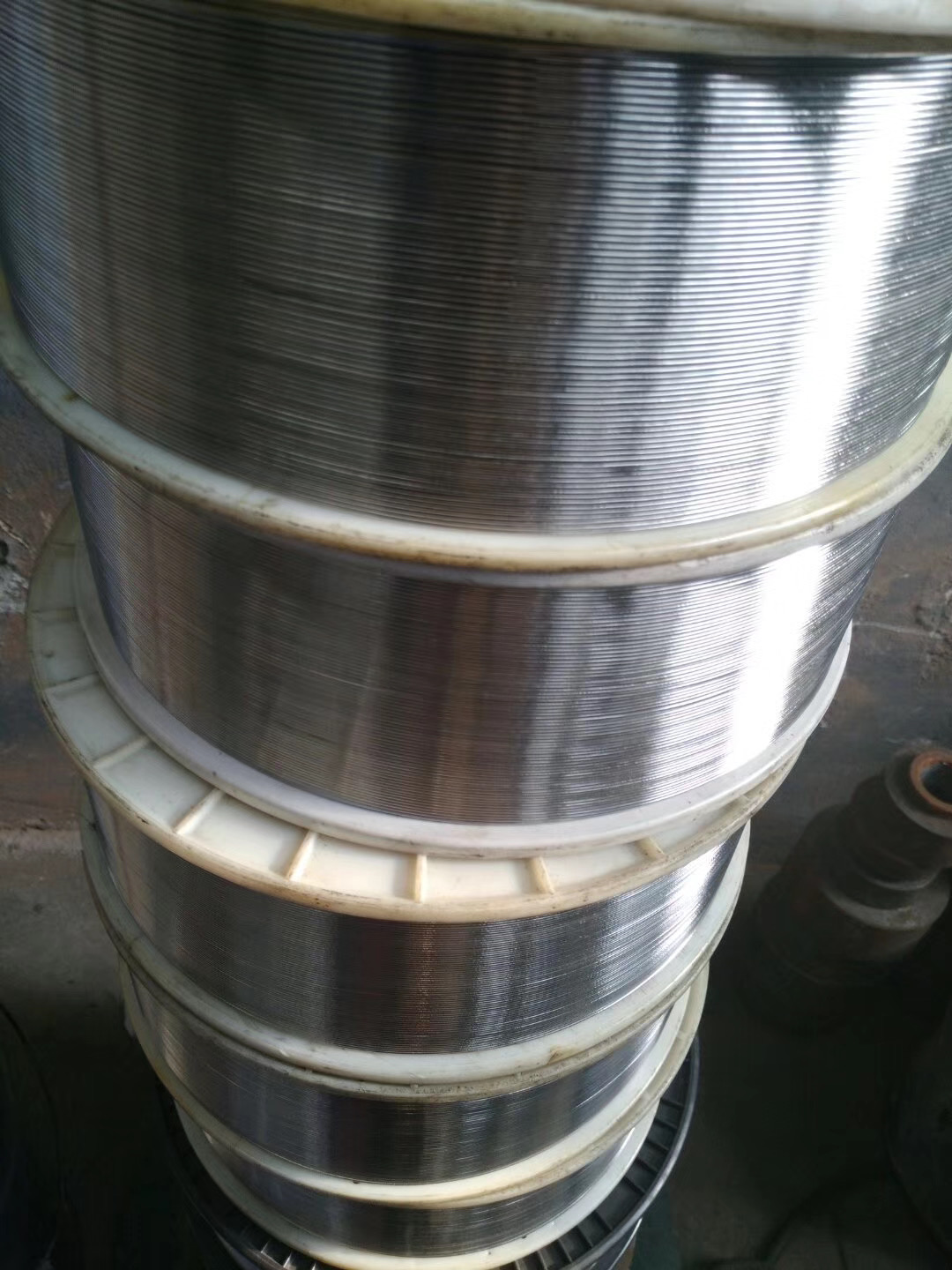

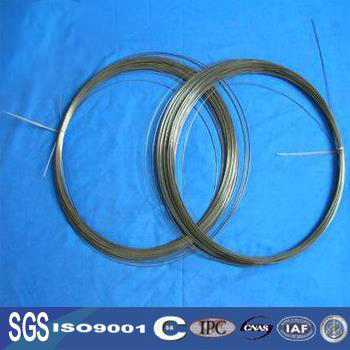

Products Name: | Titanium wire |
Material: | Gr5 (Ti-6Al-4V) |
Size: | Dia 1.0~7.0 mm * Length or customized size |
Standards | AWS A5.16, ASTM B863, AMS 4951, AMS4954 |
State: | M/Y/R |
Processing: | Hot rolling, Cold rolling |
Surface: | Bright, Polished, Pickling, Acid cleaning |
Technic Test: | Tensile test, Visual, Ultrasonic, Macrostructure, Microstructure |
Application: | Industrial, Chemical, Medical |
Material Technical
Gr5 ( Ti-6Al-4V )
This alpha-beta alloy is the workhorse alloy of the titanium industry. The alloy is fully heat treatable in section sizes up to 15mm and is used up to approximately 400°C (750°F). Since it is the most commonly used alloy – over 70% of all alloy grades melted are a sub-grade of Ti6Al4V, its uses span many aerospace airframe and engine component uses and also major non-aerospace applications in the marine, offshore and power generation industries in particular.
Table 1. The composition of Gr5 welding wire.
Grade | Chemical Composition (%) | ||||||||||||||||||
Main Content | Others( ≤ ) | ||||||||||||||||||
Ti | Al | Sn | Mo | V | Cr | Mn | Zr | Pd | Ni | Cu | Nb | Si | B | Fe | C | N | H | O | |
Gr5 | Balance | 5.5~ 6.75 | - | - | 3.5~ 4.5 | - | - | - | - | - | - | - | - | - | 0.25 | 0.05 | 0.05 | 0.012 | 0.18 |
Table 2. Typical mechanical properties for Gr5 Titanium welding wire.
Grade | Dia.(mm) | Tensile Strength | Elongation (%) |
MPa | |||
Gr5 | 1.0~2.0 | ≥ 925 | ≥ 8 |
2.0~7.0 | ≥ 895 | ≥ 10 |
Table 3. Allowable deviation of Titanium wire
Dia.(mm) | 0.1~0.2 | 0.2~0.5 | 0.5~1.0 | 1.0~2.0 | 2.0~4.0 | 4.0~7.0 |
Deviation | -0.025 | -0.04 | -0.06 | -0.08 | -0.10 | -0.14 |
Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest top quality low price gr5 titanium wire manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
