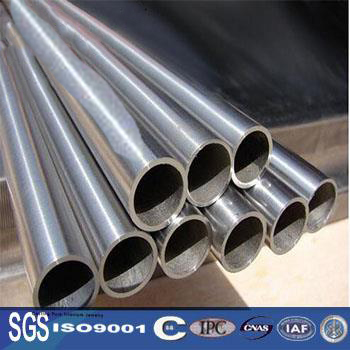

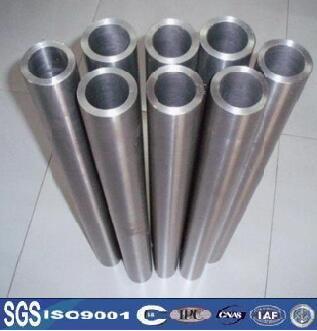

Pure Nickel 200 201 N4 N6 Tube For Chemical Industry
Pure Nickel 200 201 N4 N6 Tube For Chemical Industry
Pure Nickel 200 201 N4 N6 Tube For Chemical Industry
Pure Nickel 200 201 N4 N6 Tube For Chemical Industry
ProductDescriptionItemnameNickel201purenickelpipeastmb161SizerangeO.D10~114mmW.T0.4~10mmLengthMax15000mmStandardASTMB163,ASTMB161,ASTMB829Applications1)HeatExchanger2)PowerandChemicalPlantApplications
stock： 0
Product Description
Item name | Nickel 201 pure nickel pipe astm b161 |
Size range | O.D 10~114mm |
Standard | ASTM B163, ASTM B161, ASTM B829 |
Applications | 1) Heat Exchanger |
Chemical composition:
Grade | Element Composition/% | ||||||
Ni+Co | Mn | Cu | Fe | C | Si | S | |
Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.01 |
Ni200 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.01 |
N4 | ≥99.9 | ≤0.002 | ≤0.015 | ≤0.04 | ≤0.01 | ≤0.03 | ≤0.001 |
N6 | ≥99.5 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.005 |
Mechanical properties:
Grade | Condition | Tensile Strength | Yield Strength 0.2% offset ≥ (MPa) | Elongation |
Ni201 | annealed | 345 | 80 | 35 |
stress-relieved | 415 | 205 | 15 | |
Ni200 | annealed | 380 | 105 | 35 |
stress-relieved | 380 | 80 | 40 | |
N4 | M (soft) | 390 | / | 35 |
Y (hard) | 540 | / | / | |
N6 | M (soft) | 390 | / | 35 |
Y (hard) | 540 | / | / |
Ni | C | Mn | Fe | S | Si | Cu | Cr | Al | Ti | Nb | Mo | |
Nickel 200 | 99.5 | 0.08 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
Nickle 201 | 99.5 | 0.01 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
Monel 400 | 66.5 | 0.2 | 1 | 1.2 | 0.01 | 0.2 | 31.5 | -- | -- | -- | -- | -- |
Monel 401 | 42.5 | 0.05 | 1.6 | 0.4 | 0.008 | 0.1 | -- | -- | -- | -- | -- | |
Monel K500 | 66.5 | 0.1 | 0.8 | 1 | 0.005 | 0.2 | 29.5 | -- | 2.7 | 0.5 | -- | -- |
Inconel 600 | 76 | 0.08 | 0.5 | 8 | 0.006 | 0.2 | 0.2 | 15.5 | -- | -- | -- | -- |
Inconel 601 | 60.5 | 0.05 | 0.5 | 14.1 | 0.007 | 0.2 | 0.5 | 23 | 1.4 | -- | -- | -- |
Inconel 718 | 52.5 | 0.04 | 0.2 | 18.5 | 0.008 | 0.2 | 0.2 | 19 | 0.5 | 0.9 | 5.1 | 3 |
Inconel X-715 | 73 | 0.04 | 0.5 | 7 | 0.005 | 0.2 | 0.2 | 15.5 | 0.7 | 2.5 | 1 | -- |
Incoloy 800 | 32.5 | 0.05 | 0.8 | 46 | 0.008 | 0.5 | 0.4 | 21 | 0.4 | 0.4 | -- | -- |
Incoloy 803 | 32.0-37.0 | 0.06-0.10 | ≤1.50 | ≤0.015 | ≤1.0 | ≤0.75 | 25.0-29.0 | 0.15-0.60 | 0.15-0.6 | -- | -- | |
Incoloy 825 | 42 | 0.03 | 0.5 | 30.4 | 0.02 | 0.2 | 2.2 | 21.5 | 0.1 | 0.9 | -- | 3 |
Shenyang Bona Titanium Technology Co.,Ltd.is one of the largest pure nickel 200 201 n4 n6 tube for chemical industry manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
