Product desciption
Inconel 718 have good fatigue resistance, radiation resistance, oxidation resistance, corrosion resistance, and good processability, good welding performance. It can be able to manufacture all kinds of complex shape parts.In the aerospace, nuclear power, oil industry, and in the extrusion die, in the above temperature range obtained the extremely widespread application.
Inconel series: 600,601,617,625,690,718,825

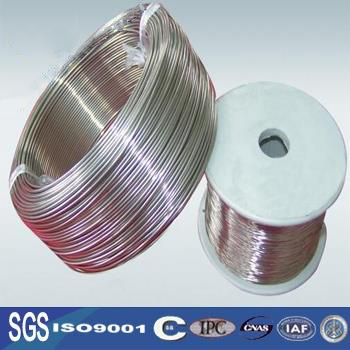

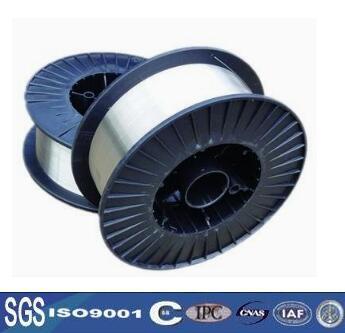

Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Specification
| Ni | Cr | Fe | Mo | Nb | Co | C | Mn | Si | S | Cu | Al | Ti |
MIN | 50 | 17 | rest | 2.8 | 4.75 |
|
|
|
|
|
|
|
|
MAX | 55 | 21 |
| 3.3 | 5.5 | 10 | 0.08 | 0.35 | 0.35 | 0.015 | 0.3 | 0.8 | 1.15 |
Minimum mechanical properties in the room temperature:
Density | Melting point | Thermal conductivity | Ultimate Strength | Elongation A 5 % | Brinell |
(g/cm3) | (℃) | λ/(W/m•℃) | σb/MPa |
| hardness |
|
|
|
|
| HB |
8.24 | 1260-1320 | 14.7(100℃) | 965 | 30 | ≥363 |
Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest inconel 718 nickel alloy wire with sgs manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
Chromium alloys have high strength and corrosion resistance, and alloys of iron and nickel are commonly known as stainless steel.
Used for cutting tools;To form an anti-corrosion alloy layer on the surface of steel or iron by spraying, deposition, and high temperature diffusion.Potassium bichromate and sodium bichromate are powerful oxidisers in the organic and petroleum industries;Chrome yellow, chrome orange, chrome green etc. Can be used as inorganic pigment.
Inconel 718 alloy is containing niobium, molybdenum precipitation hardening model nichrome, at 700 ℃ has high strength, good toughness and has good corrosion resistance in high and low temperature environment.Supply status can be solid solution treatment or precipitation hardening state.
Inconel718 alloy has the following characteristics:
1.Easy workability
2. At 700 ℃ has high tensile strength, fatigue strength, creep strength and fracture strength
3. at 1000 ℃ has the high oxidation
4. It has stable chemical properties at low temperature
5. Good welding performance
GH4169 is an austenite structure, and the resulting gamma phase of the precipitated hardening has excellent mechanical properties.In the process of heat treatment, the delta phase generated by the grain boundary makes the optimal plasticity.
Inconel718 alloy has excellent stress corrosion cracking and pitting resistance, both in high temperature and low temperature environment.The oxidation resistance of Inconel718 alloy is especially good at high temperature
Because of its high temperature strength and excellent corrosion resistance and workability at 700 DEG C, Inconel718 alloy can be widely used in various demanding situations.
1. turbine
2. liquid fuel rocket
3. low temperature engineering
4. acid environment
5. Nuclear Engineering
Metal materials difficult to find the shenzhen China nickel special alloy (4000-888-075).China nickel focus to solve the user product in high temperature, high corrosion, high creep, high strength, high hardness, high wear resistance and high temperature corrosion of capillary composite metal material problem in complex working environment.
Inconel 718 alloy is containing niobium, molybdenum precipitation hardening model nichrome, at 700 ℃ has high strength, good toughness and has good corrosion resistance in high and low temperature environment.Supply status can be solid solution treatment or precipitation hardening state.
Inconel718 alloy has the following characteristics:
1.turbine
2. At 700 ℃ has high tensile strength, fatigue strength, creep strength and fracture strength
(3) at 1000 ℃ has the high oxidation
It has stable chemical properties at low temperature
5. Good welding performance
