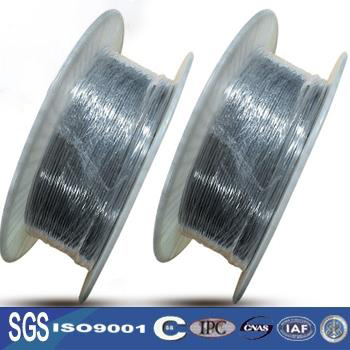

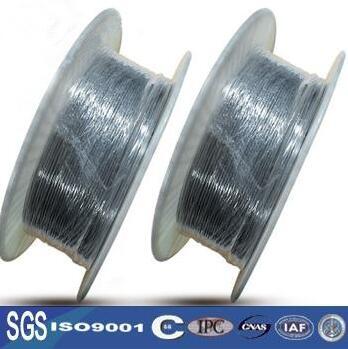

Zirconium Wire (ASTM B55 R60704)
Zirconium Wire (ASTM B55 R60704)
Zirconium Wire (ASTM B55 R60704)
Zirconium Wire (ASTM B55 R60704)
Applications •Usedtomakehightemperaturesuperconductivematerials.•Usedtomakeelectrodescomponents,foils,flangesbolts,tubesandrodsforspecialapplications.•Usedforapplicationsinmedicalequipment,suchaszirco
stock： 0
Product description
Applications
• Used to make high temperature superconductive materials.
• Used to make electrodes components, foils, flanges bolts, tubes and rods for special applications.
• Used for applications in medical equipment, such as zirconium implants.
• Used as raw material for reactors and crucibles.
Chemical Composition (%)
Zr 702 | Zr 704 | Zr 705 | Zircaloy-2 | Zircaloy-4 | |
Sn | / | 1~2% | 1~2% | 1.2~1.7% | 1.2~1.7% |
Fe | <0.05% | 0.1~0.2% | <0.05% | 0.07~0.2% | 0.07~0.2% |
Cr | <0.05% | 0.1~0.2% | <0.01% | 0.05~0.15% | 0.05~0.15% |
Ni | / | / | / | 0.03~0.08% | <0.007% |
Hf | 1~2.5% | <4.5% | <4.5% | <200ppm for Nuclear industry | <200ppm for Nuclear industry |
Nb | / | / | 2~3% | ||
Zr+Hf | ~99.5% | ~97.5% | ~95.5% | ~98% | ~98% |
Elements | Zr+Hf | Fe | Cr | Mo | Al | Ti | Mn | Ni |
Max(ppm) | >99.9% | 100 | 10 | 10 | 5 | 10 | 5 | 50 |
Elements | Cu | Sn | Sb | W | Pb | Bi | Mg | P |
Max(ppm) | 5 | 5 | 5 | 10 | 5 | 5 | 5 | 10 |
Elements | Si | N | C | H | O | S | Nb | B |
Max(ppm) | 10 | 30 | 30 | 10 | 150 | 20 | 5 | 5 |
Elements | Cd | Be | Ca | Li | Zn | Na | V | K |
Max(ppm) | 5 | 5 | 5 | 5 | 10 | 5 | 10 | 5 |
Elements | Zr | |||||||
Max(ppm) | <1.0% |
Products details
Origin: shenyang brand: ronghao variety model: R60702 r60704 r60705 ZR1
USES: electronic industrial appearance: ring, silk, silk materials: zirconium
Size: chemical composition of 3mm in diameter: > 99.6% zirconium surface: light
Standard: awsa5.24 ASTM B 550/550m - 07 density: 6.51 g/cm3 name: zirconium silk
Packing and delivery
Packing material: adhesive plate internal protective material
Delivery time: 3 days wtthin 15
ASTM b550 R60702 r60704 r60705 ZR1
The products of the company
Zirconium and zirconium wire
Zirconium and zirconium alloys
Level R60702 r60704 r60705 ZR1
Size phi (0.1-3.0) by l mm
Gb8769 Q/BS 6431 standard
ASTM b550 ASTM b550m
Shenyang Bona Titanium Technology Co.,Ltd. is one of the largest zirconium wire (astm b55 r60704) manufacturers and suppliers in China, offering the price list and excellent services. Should you're interested in it, please be free to buy the cheap and quality products made in China at low price from our factory.
